Square speaker

Overview of the advantages of Loudspeakers:

  • Widest frequency range and best sound, compared with other sound solutions
  • Different Impedances available
  • Differend diameter and frequencies available
  • Wire/connector assembly available on request
  • Automotive specification and sound solution available on request

There are 5 of 45 products shown.

CMS1026S3-4N1.5-K600R

  • Length [mm]: 26 mm
  • Width [mm]: 10 mm
  • Height [mm]: 3 mm
  • Impedance [Ω]: 4 Ω
  • Normal Power [mW]: 1,500 mW
  • SPL [dB]: 92 dB
  • Frequency [Hz]: 600 Hz ... 20,000 Hz
  • Manufacturer: Chinasound
CMS1026S3-4N1.5-K600R

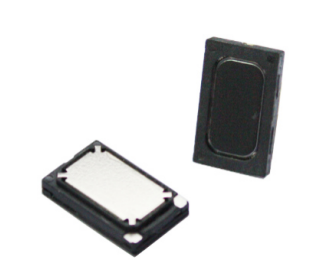

CMS0813S2.5-6N0.5-N950R

  • Length [mm]: 13 mm
  • Width [mm]: 8 mm
  • Height [mm]: 2.5 mm
  • Impedance [Ω]: 6 Ω
  • Normal Power [mW]: 500 mW
  • SPL [dB]: 84 dB
  • Frequency [Hz]: 950 Hz ... 20,000 Hz
  • Manufacturer: Chinasound
CMS0813S2.5-6N0.5-N950R

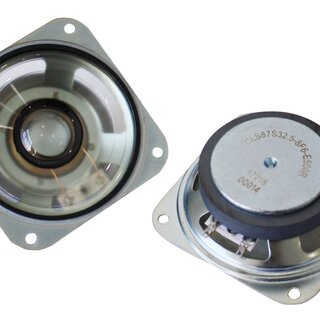

CLS87S32.5-8F6-E500R

  • Length [mm]: 87 mm
  • Width [mm]: 87 mm
  • Height [mm]: 32.5 mm
  • Impedance [Ω]: 8 Ω
  • Normal Power [mW]: 6,000 mW
  • SPL [dB]: 102 dB
  • Frequency [Hz]: 280 Hz ... 10,000 Hz
  • Manufacturer: Chinasound
CLS87S32.5-8F6-E500R

CMS1115SA2.5-8N0.7-K700R

  • Length [mm]: 15 mm
  • Width [mm]: 11 mm
  • Height [mm]: 2.5 mm
  • Impedance [Ω]: 8 Ω
  • Normal Power [mW]: 700 mW
  • SPL [dB]: 89 dB
  • Frequency [Hz]: 700 Hz ... 20,000 Hz
  • Manufacturer: Chinasound
CMS1115SA2.5-8N0.7-K700R

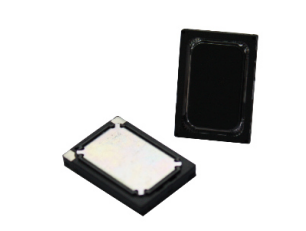

CMS1420S3-8N0.7-K650R

  • Length [mm]: 20 mm
  • Width [mm]: 14 mm
  • Height [mm]: 3 mm
  • Impedance [Ω]: 8 Ω
  • Normal Power [mW]: 700 mW
  • SPL [dB]: 90 dB
  • Frequency [Hz]: 650 Hz ... 20,000 Hz
  • Manufacturer: Chinasound
CMS1420S3-8N0.7-K650R
Length [mm]

Width [mm]

Height [mm]

Normal Power [mW]

Frequency [Hz]
