Lead acid batteries, EU

These 2-stage chargers are suitable for quick and subsequent continuous charging of maintenance-free, valve-regulated and open lead batteries. During the first stage, charging is carried out with increased charging voltage, after which the switchover to floating charging mode occurs automatically, in which the battery is permanently kept at full charge.

  • Input voltage: 100-240 VAC ±10% / 50-60 Hz (sometimes no wide range input!)
  • Charging voltagges:

    1st stage fast charging:
    2.4V/cell constant voltage

    2nd stage floating charging voltage:
    2.3V/cell constant voltage

  • Charging current display: LED
  • Loading time: unlimited possible
  • Trickle charge: automatically after full charge
  • Output line: 2 m

  • Only charge Pb batteries.
  • Do not open. Repairs only permitted by the manufacturer.

There are 2 of 2 products shown.

ALCT6-24A-10

  • Description: LTGBF1Z6-24V/10A2St
  • Weight [g]: 1.333 g
  • Length [mm]: 272 mm
  • Width [mm]: 142 mm
  • Height [mm]: 194 mm
  • Voltage [V]: 6-12-24 VDC autom.
  • Current [A]: 6 V: 1 / 12 V: 1, 5 oder 10 / 24 V 1 oder 5
  • Manufacturer: Ansmann
ALCT6-24A-10

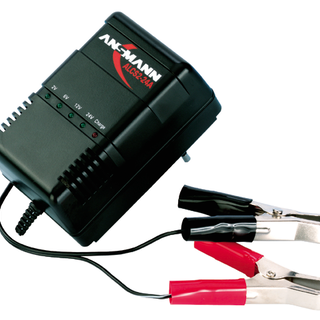

ALCS2-24A

  • Description: LSKBF1O2-24V/0,9A
  • Weight [g]: 0.52 g
  • Length [mm]: 106 mm
  • Width [mm]: 68 mm
  • Height [mm]: 51 mm
  • Voltage [V]: 2-6-12-24 VDC autom.
  • Current [A]: 0,9/0,7/0,6/0,3
  • Manufacturer: Ansmann
ALCS2-24A
