System on Modules (SOM)

The use of EFUS ™ A9 guarantees a quick "Time-to-Market". The form factor EFUS™ has a size of only 47x62mm and is equipped with the finger contacts for the current 230-Pin MXM2 Edge Connectors (it is inexpensive as well as approved for industrial and automotive).

The EFUS™A9 is designed under the directives of "Easy Layout". This mean all signal lines can be routed to the base board with no crossing points to the connector (simple baseboard, good EMC behavior). The Cortex-A9 CPU i.MX6 has a high computing power, very good multimedia features (3D graphics, 1080p Decoder 1080p , H.264 HP , ARMv7 ™ , NEON and VFPv3) and a variety of interfaces. Laterally the PCB area of EFUS™ can be extended with wireless modules (WLAN, ZigBee, Z-Wave, EnOcean). Thereby it is no need to change the layout of the CPU range.

We offer a project guarantee by our partner F&S, which is based on "everything from one source" (hardware , software and manufacturing), the good support and the availability of each 10 years EFUS™ module.

There are 6 of 6 products shown.

efusA7UL - SOM

  • CPU: NXP i.MX 6UL/ULL
  • Core: ARM Cortex-A7
  • Number of Cores: 1
  • RAM: max. 1 GB
  • min. availabilty: 2031/2035
  • Manufacturer: F&S
efusA7UL - SOM

efusA9 - SOM

  • CPU: NXP i.MX 6
  • Core: ARM Cortex-A9
  • Number of Cores: 38018
  • RAM: max. 2GB
  • min. availabilty: 2035
  • Manufacturer: F&S
efusA9 - SOM

efusA9X - SOM

  • CPU: NXP i.MX 6SoloX
  • Core: ARM Cortex-A9 + Cortex-M4
  • Number of Cores: 1 + M4
  • RAM: max. 2GB
  • min. availabilty: 2035
  • Manufacturer: F&S
efusA9X - SOM

PicoCoreMX8MM - SOM

  • CPU: NXP i.MX 8M Mini
  • Core: ARM Cortex-A53 + Cortex-M4
  • Number of Cores: 2/4 + M7
  • min. availabilty: 2034
  • Manufacturer: F&S
PicoCoreMX8MM - SOM

PicoCoreMX8MN -SOM

  • CPU: NXP i.MX 8M Nano
  • Core: ARM Cortex-A53 + Cortex-M7
  • Number of Cores: 1/ 2/ 4 + M7
  • min. availabilty: 2034
  • Manufacturer: F&S
PicoCoreMX8MN -SOM

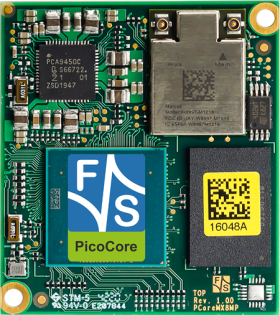

PicoCoreMX8MP - SOM

  • CPU: NXP i.MX 8M Plus
  • Core: ARM Cortex-A53 + Cortex-M7
  • Number of Cores: 2/4 + M7
  • Flash: max. 32GB eMMC EEPROM
  • RAM: max. 8GB LPDDR4
  • min. availabilty: 2036
  • Manufacturer: F&S
PicoCoreMX8MP - SOM
