Piezo Buzzer

Overview of the advantages of Piezo Sounders:

  • Robust and cost efficient sound solution
  • Ideal for simple sound signals in a small frequency range
  • Suitable for household appliances, medical and health care products
  • Size from 9,9mm to Ø60mm
  • Sound between soft and aggressive noisy
  • Frequency between 2kHz and 5kHz
  • Operation temperature between -40°C and 120°C
  • Voltage between 3V and 12V (higher on demand)

There are 10 of 13 products shown.

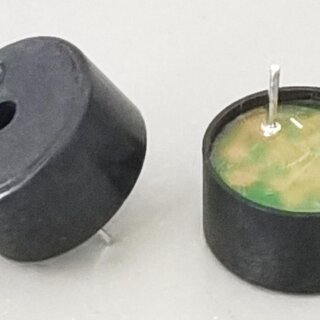

PD-1407

  • Height [mm]: 7.5 mm
  • Diameter [mm]: 14 mm
  • Rated Voltage [V]: 12 V
  • Rated Current [mA]: 10 mA
  • Sound Output at 10cm [dB]: 90 dB
  • Resonant Frequency [Hz]: 4,200 Hz
  • Manufacturer: Qinlon
PD-1407

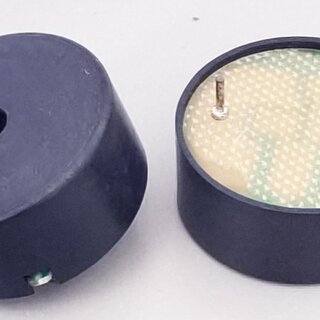

PD-3015P-17.5

  • Height [mm]: 14.7 mm
  • Diameter [mm]: 30.5 mm
  • Rated Voltage [V]: 12 V
  • Rated Current [mA]: 15 mA
  • Sound Output at 10cm [dB]: 93 dB
  • Resonant Frequency [Hz]: 3,000 Hz
  • Manufacturer: Qinlon
PD-3015P-17.5

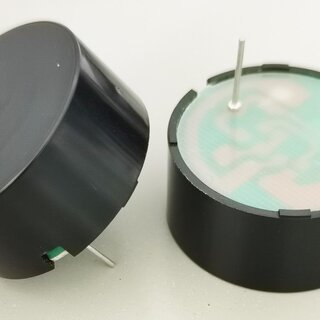

PD-2310P

  • Height [mm]: 10 mm
  • Diameter [mm]: 23 mm
  • Rated Voltage [V]: 12 V
  • Rated Current [mA]: 15 mA
  • Sound Output at 10cm [dB]: 85 dB
  • Resonant Frequency [Hz]: 3,500 Hz
  • Manufacturer: Qinlon
PD-2310P

PD-2310W

  • Height [mm]: 10 mm
  • Diameter [mm]: 22.8 mm
  • Rated Voltage [V]: 12 V
  • Rated Current [mA]: 15 mA
  • Sound Output at 10cm [dB]: 87 dB
  • Resonant Frequency [Hz]: 3,500 Hz
  • Manufacturer: Qinlon
PD-2310W

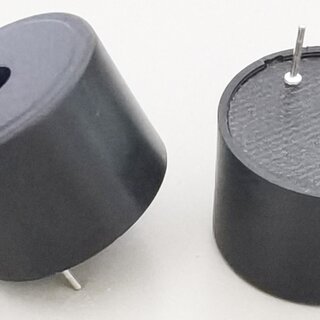

PD-2316P

  • Height [mm]: 16 mm
  • Diameter [mm]: 23.8 mm
  • Rated Voltage [V]: 12 V
  • Rated Current [mA]: 15 mA
  • Sound Output at 10cm [dB]: 90 dB
  • Resonant Frequency [Hz]: 3,500 Hz
  • Manufacturer: Qinlon
PD-2316P

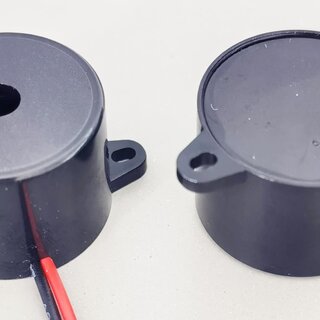

PD-2316W

  • Height [mm]: 16 mm
  • Diameter [mm]: 22.8 mm
  • Rated Voltage [V]: 12 V
  • Rated Current [mA]: 15 mA
  • Sound Output at 10cm [dB]: 90 dB
  • Resonant Frequency [Hz]: 3,500 Hz
  • Manufacturer: Qinlon
PD-2316W

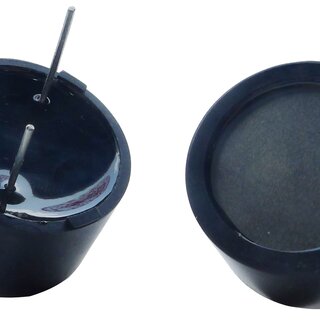

CPA26D12-3.2R

  • Height [mm]: 15.5 mm
  • Diameter [mm]: 26 mm
  • Rated Voltage [V]: 12 V
  • Rated Current [mA]: 20 mA
  • Sound Output at 10cm [dB]: 94 dB
  • Resonant Frequency [Hz]: 3,200 Hz
  • Manufacturer: Chinasound
CPA26D12-3.2R

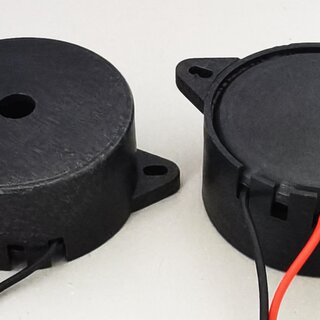

PD-3015W

  • Height [mm]: 15 mm
  • Diameter [mm]: 30 mm
  • Rated Voltage [V]: 12 V
  • Rated Current [mA]: 15 mA
  • Sound Output at 10cm [dB]: 95 dB
  • Resonant Frequency [Hz]: 3,200 Hz
  • Manufacturer: Qinlon
PD-3015W

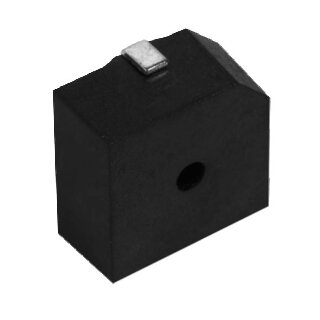

CSPB15A05-4.0

  • Length [mm]: 11 mm
  • Width [mm]: 9.5 mm
  • Height [mm]: 8 mm
  • Rated Voltage [V]: 5 V
  • Rated Current [mA]: 8 mA
  • Sound Output at 10cm [dB]: 85 dB
  • Resonant Frequency [Hz]: 4,000 Hz
  • Manufacturer: Chinasound
CSPB15A05-4.0

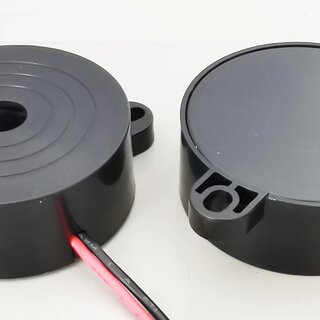

PD-4216W

  • Height [mm]: 16 mm
  • Diameter [mm]: 42 mm
  • Rated Voltage [V]: 12 V
  • Rated Current [mA]: 25 mA
  • Sound Output at 10cm [dB]: 95 dB
  • Resonant Frequency [Hz]: 2,900 Hz
  • Manufacturer: Qinlon
PD-4216W
Length [mm]

Width [mm]

Height [mm]

Diameter [mm]

Rated Voltage [V]

Rated Current [mA]

Sound Output at 10cm [dB]

Resonant Frequency [Hz]
