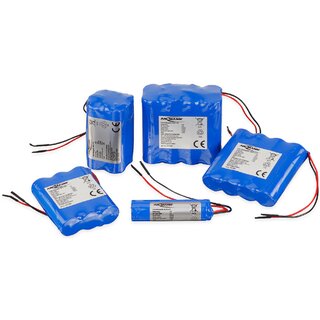

Roundcells with protection circuit

Li-ion battery packs including protection circuit for use in portable applications. The built-in protective devices reliably prevent deep discharges or overcharging during operation. With these packs, great importance was placed on the absolutely high quality of the Li-ion cells used. The production of the packs is certified according to the latest ISO-9001 quality standards

  • Technical data:
    Nominal voltage: 3.7V per cell
    Self-discharge rate: <5% per month at 20°C.
    Cycle life: 500 @ C/5 @ 20% depth of discharge.
    There are UN protocols for all listed battery packs.

There are 3 of 3 products shown.

6419-LI-ION-PACK1S1P

  • Weight [g]: 47.5 g
  • Length [mm]: 19 mm
  • Width [mm]: 19 mm
  • Height [mm]: 68 mm
  • Voltage [V]: 3.6 V
  • Current [A]: 2.5 A
  • Capacity [Ah]: 2.6 Ah
  • Manufacturer: Ansmann
6419-LI-ION-PACK1S1P

6422-LI-ION-PACK2S2P-oPTC

  • Weight [g]: 196 g
  • Length [mm]: 38 mm
  • Width [mm]: 38 mm
  • Height [mm]: 70 mm
  • Voltage [V]: 7.2 V
  • Current [A]: 5 A
  • Capacity [Ah]: 5.2 Ah
  • Manufacturer: Ansmann
6422-LI-ION-PACK2S2P-oPTC

6423-LI-ION-PACK3S1P

  • Weight [g]: 145 g
  • Length [mm]: 57 mm
  • Width [mm]: 19 mm
  • Height [mm]: 70 mm
  • Voltage [V]: 10.8 V
  • Current [A]: 5 A
  • Capacity [Ah]: 2.6 Ah
  • Manufacturer: Ansmann
6423-LI-ION-PACK3S1P
