Electromagnetic buzzer

Overview of the advantages of Electromagnetic Buzzer:

  • Robust and reliable buzzer (DC driven), PTH solderable
  • Max SPL at low voltage
  • Small order quantity
  • Short lead time
  • Suitable for manifold applications

There are 5 of 5 products shown.

YMD-0903A

  • Height [mm]: 5.5 mm
  • Diameter [mm]: 9 mm
  • Rated Voltage [V]: 3 V
  • Rated Current [mA]: 30 mA
  • Sound Output at 10cm [dB]: 80 dB
  • Manufacturer: Qinlon
YMD-0903A

YMD-0905A

  • Height [mm]: 5.5 mm
  • Diameter [mm]: 9 mm
  • Rated Voltage [V]: 5 V
  • Rated Current [mA]: 30 mA
  • Sound Output at 10cm [dB]: 80 dB
  • Manufacturer: Qinlon
YMD-0905A

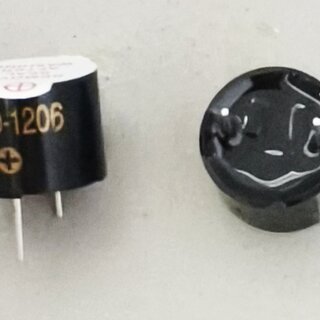

YMD-1206A

  • Height [mm]: 9.5 mm
  • Diameter [mm]: 12 mm
  • Rated Voltage [V]: 6 V
  • Rated Current [mA]: 30 mA
  • Sound Output at 10cm [dB]: 85 dB
  • Manufacturer: Qinlon
YMD-1206A

YMD-12T05A(3.1)-P12

  • Height [mm]: 7.5 mm
  • Diameter [mm]: 12 mm
  • Rated Voltage [V]: 5 V
  • Rated Current [mA]: 30 mA
  • Sound Output at 10cm [dB]: 80 dB
  • Resonant Frequency [Hz]: 3,100 Hz
  • Manufacturer: Qinlon
YMD-12T05A(3.1)-P12

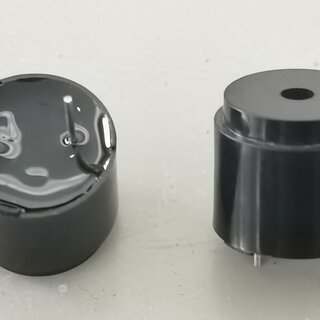

YMD-1606A

  • Height [mm]: 14 mm
  • Diameter [mm]: 16 mm
  • Rated Voltage [V]: 6 V
  • Rated Current [mA]: 30 mA
  • Sound Output at 10cm [dB]: 85 dB
  • Resonant Frequency [Hz]: 2,200 Hz
  • Manufacturer: Qinlon
YMD-1606A
