Pressure Transmitter

Transmitters are a key component of measurement and control technology in industrial systems and applications. They supply measurement data for the control, monitoring or supervision of hydraulic or pneumatic processes. With their standardized output signal interfaces such as 4~20mA or 0~10V, these transmitters are an indispensable part of the IoT infrastructure.

There are 10 of 26 products shown.

MPM4150

  • Description: Pressure Transmitter designed for the pump and compressor industry.
  • min. Pressure [bar]: 0 bar
  • max. Pressure [bar]: 35 bar
  • Total accuracy [±%FS]: 0.5 ±%FS
  • Output signal: 4mA~20mADC
  • Power supply min. [VDC]: 8 V
  • Power supply max. [VDC]: 28 V
  • Manufacturer: Microsensor
MPM4150

MPM430

  • Description: Low Range Pressure Transmitter
  • min. Pressure [bar]: -0.1 bar
  • max. Pressure [bar]: 0.2 bar
  • Total accuracy [±%FS]: 0.5 ±%FS
  • Output signal: 4mA~20mADC
  • Power supply min. [VDC]: 12 V
  • Power supply max. [VDC]: 28 V
  • Manufacturer: Microsensor
MPM430

MPM4503

  • Description: Cost-effective pressure transmitter using silicon micro-fused technology sensing element
  • min. Pressure [bar]: 0 bar
  • max. Pressure [bar]: 50 bar
  • Total accuracy [±%FS]: 1 ±%FS
  • Power supply min. [VDC]: 3.3 V
  • Power supply max. [VDC]: 28 V
  • Manufacturer: Microsensor
MPM4503

MPM4511

  • Description: Micro-fused Pressure Transmitter
  • min. Pressure [bar]: 0 bar
  • max. Pressure [bar]: 1,000 bar
  • Total accuracy [±%FS]: 0.5 ±%FS
  • Power supply min. [VDC]: 5 V
  • Power supply max. [VDC]: 33 V
  • Manufacturer: Microsensor
MPM4511

MPM4511A

  • Description: Hydraulic Pressure Transmitter
  • min. Pressure [bar]: 0 bar
  • max. Pressure [bar]: 350 bar
  • Total accuracy [±%FS]: 0.5 ±%FS
  • Power supply min. [VDC]: 5 V
  • Power supply max. [VDC]: 33 V
  • Manufacturer: Microsensor
MPM4511A

MPM4530

  • Description: High Temperature Pressure Transmitter
  • min. Pressure [bar]: 0 bar
  • max. Pressure [bar]: 1,600 bar
  • Total accuracy [±%FS]: 0.5 ±%FS
  • Output signal: 4mA~20mADC
  • Manufacturer: Microsensor
MPM4530

MPM4730

  • Description: Digital RS485 HART Pressure Transmitter
  • min. Pressure [bar]: -1 bar
  • max. Pressure [bar]: 1,000 bar
  • Total accuracy [±%FS]: 0.25 ±%FS
  • Power supply min. [VDC]: 10 V
  • Power supply max. [VDC]: 30 V
  • Manufacturer: Microsensor
MPM4730

MPM4736

  • Description: Digital Pressure Transmitter
  • min. Pressure [bar]: -1 bar
  • max. Pressure [bar]: 100 bar
  • Total accuracy [±%FS]: 0.25 ±%FS
  • Output signal: RS485
  • Power supply min. [VDC]: 3.6 V
  • Power supply max. [VDC]: 28 V
  • Manufacturer: Microsensor
MPM4736

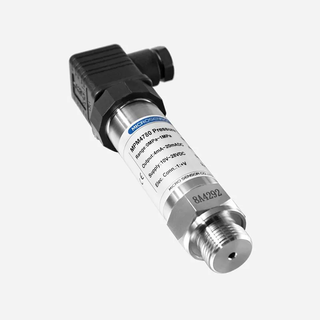

MPM4780

  • Description: Intelligent Pressure Transmitter
  • min. Pressure [bar]: -1 bar
  • max. Pressure [bar]: 1,000 bar
  • Total accuracy [±%FS]: 0.5 ±%FS
  • Output signal: RS485
  • Power supply min. [VDC]: 9 V
  • Power supply max. [VDC]: 28 V
  • Manufacturer: Microsensor
MPM4780

MPM480

  • Description: LED Display Pressure Transmitter
  • min. Pressure [bar]: -1 bar
  • max. Pressure [bar]: 1,000 bar
  • Total accuracy [±%FS]: 0.25 ±%FS
  • Power supply min. [VDC]: 15 V
  • Power supply max. [VDC]: 28 V
  • Manufacturer: Microsensor
MPM480
