Baolong

Baolong develops compact, innovative and reliable vibration motors.

Zhejiang Baolong M&E Co, Ltd is a leading manufacturer of vibration motors in Wenzhou, Zhejiang, China. The company was founded in 1986. Strong research and development capabilities and excellent production technology have created the high-quality brand. The workforce consists of 822 employees. The production capacity is over 20 million units per month with a production area of 12,000m².

Product portfolio

Baolong's product portfolio includes mini vibration motors and micro DC motors. These are divided into coin types, cylinder types, SMD motors and linear vibration motors.

Applications

  • Haptic feedback

There are 10 of 32 products shown.

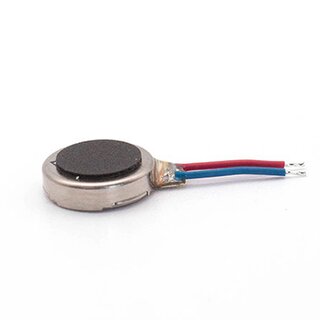

BVM0820-X8-03U-Z

  • Diameter [mm]: 8 mm
  • Height [mm]: 2.1 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 10,000 rpm
  • Max. Rated Current [mA]: 85 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM0820-X8-03U-Z

BLM0512GA-FP181-0SU

  • Length [mm]: 12 mm
  • Width [mm]: 4 mm
  • Height [mm]: 4.5 mm
  • Rated Voltage [V]: 1.8 V
  • Frequency [Hz]: 235 Hz
  • Max. Rated Current [mA]: 60 mA
  • Manufacturer: Baolong
BLM0512GA-FP181-0SU

BVM0720-X8-0SU

  • Diameter [mm]: 7 mm
  • Height [mm]: 2 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 8,000 rpm
  • Max. Rated Current [mA]: 85 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM0720-X8-0SU

BVM0834-X25-0TU-MF

  • Diameter [mm]: 8 mm
  • Height [mm]: 3.4 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 13,500 rpm
  • Max. Rated Current [mA]: 85 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM0834-X25-0TU-MF

BVM0827-FP2-1T02U-1

  • Diameter [mm]: 8 mm
  • Height [mm]: 2.7 mm
  • Rated Voltage [V]: 1.3 V
  • Max. Rated Speed [rpm]: 6,500 rpm
  • Max. Rated Current [mA]: 37 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM0827-FP2-1T02U-1

BVM1020-X6-1RU

  • Diameter [mm]: 10 mm
  • Height [mm]: 2.1 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 13,500 rpm
  • Max. Rated Current [mA]: 85 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM1020-X6-1RU

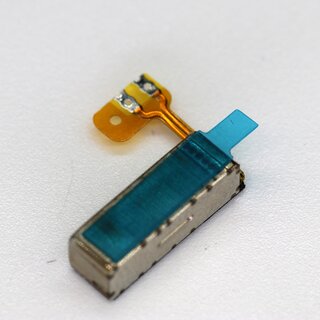

BLM0412-FP135-1S03U

  • Length [mm]: 12 mm
  • Width [mm]: 4 mm
  • Height [mm]: 3.95 mm
  • Rated Voltage [V]: 1.8 V
  • Frequency [Hz]: 240 Hz
  • Max. Rated Current [mA]: 60 mA
  • Manufacturer: Baolong
BLM0412-FP135-1S03U

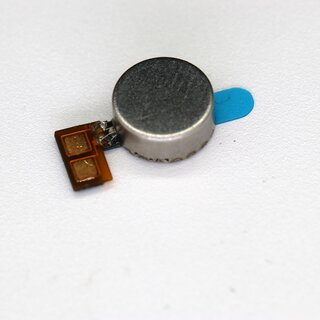

BLM0832D-FP81-1SPU

  • Height [mm]: 3.2 mm
  • Diameter [mm]: 8 mm
  • Rated Voltage [V]: 1.8 V
  • Frequency [Hz]: 205 Hz
  • Max. Rated Current [mA]: 90 mA
  • Manufacturer: Baolong
BLM0832D-FP81-1SPU

BVM0827-X10-1T03U

  • Diameter [mm]: 8 mm
  • Height [mm]: 2.7 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 13,500 rpm
  • Max. Rated Current [mA]: 85 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM0827-X10-1T03U

BVM1034-C4701X50-1TU

  • Diameter [mm]: 10 mm
  • Height [mm]: 3.4 mm
  • Rated Voltage [V]: 3 V
  • Max. Rated Speed [rpm]: 11,500 rpm
  • Max. Rated Current [mA]: 85 mA
  • Operating Temp [°C]: -30 °C ... 70 °C
  • Manufacturer: Baolong
BVM1034-C4701X50-1TU
